Description

SPECIFICATIONS

Brand Name: Fosi Audio

Certification: CE

Channels: 2

Hign-concerned Chemical: None

Maximum Power Per Channel: NO POWER

Model Number: ZD3

Origin: Mainland China

Package: Yes

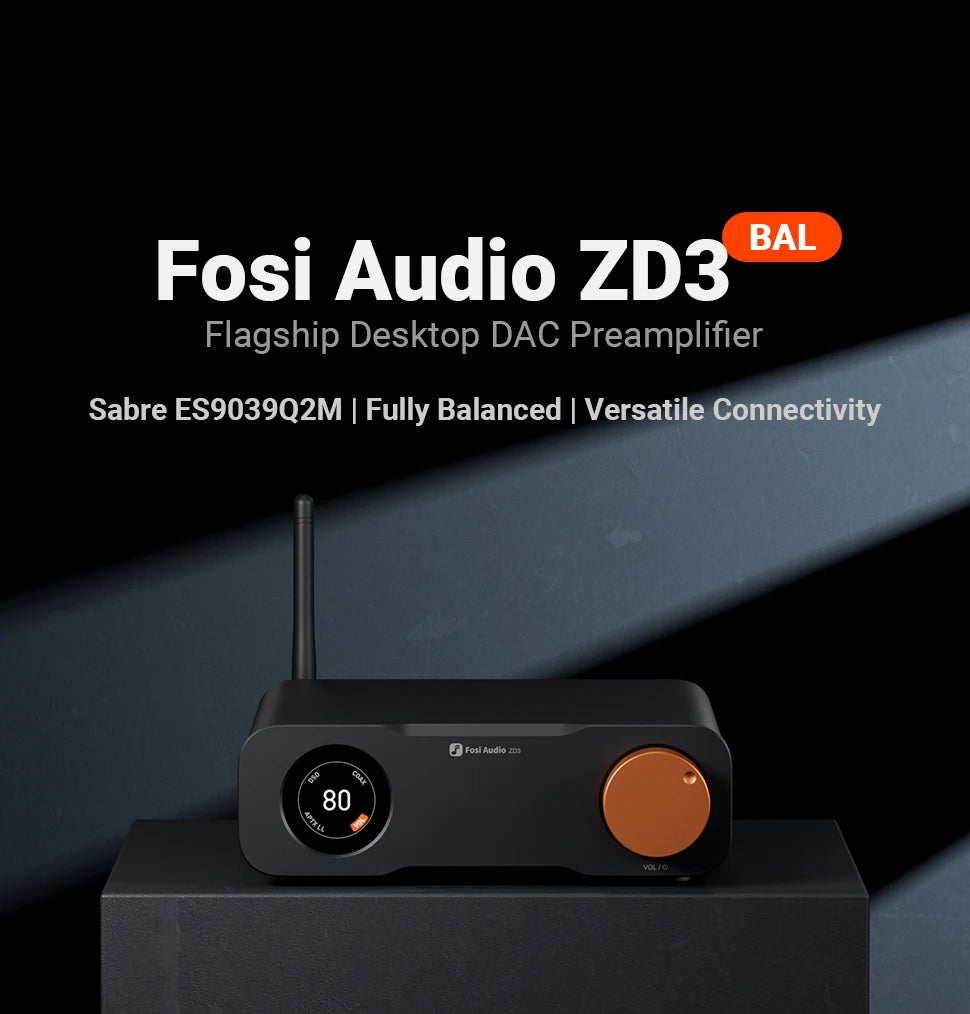

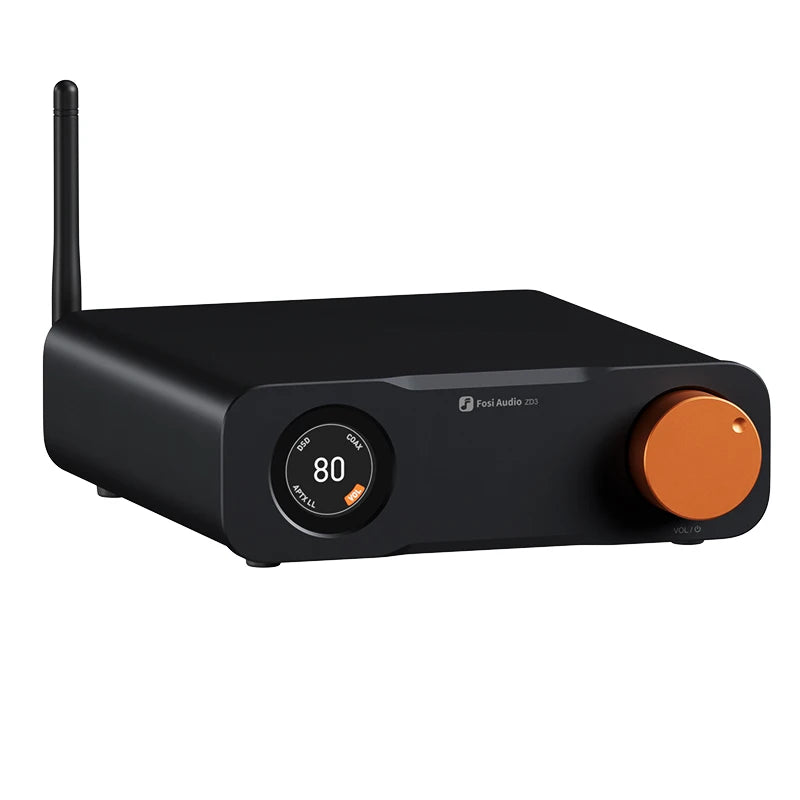

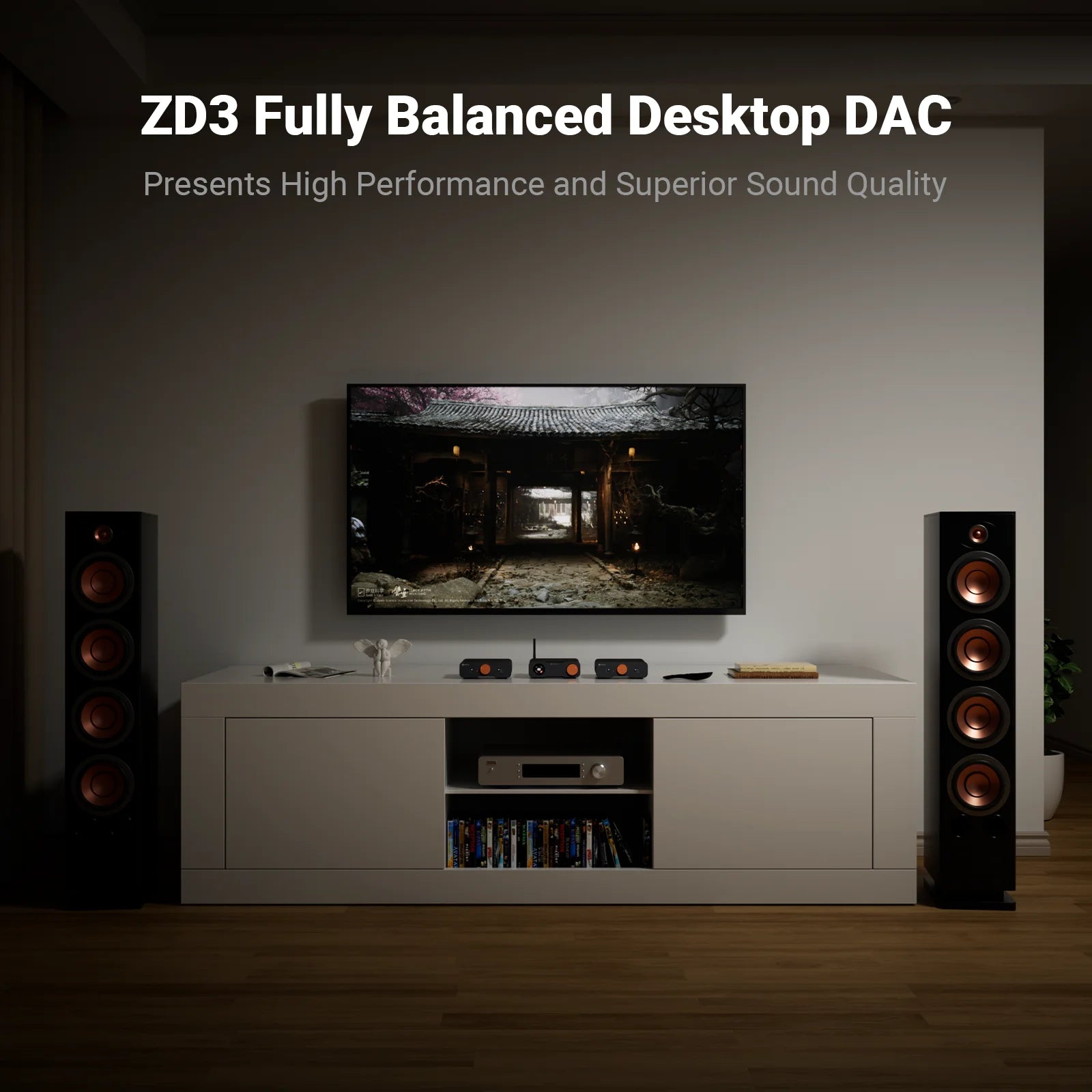

Fosi Audio ZD3 Bluetooth Desktop DAC Preamp ARC Input, ES9039Q2M Fully Balanced Digital for Home Stereo Amplifier with Remote

Description

• Flagship Desktop DAC: A fully balanced digital-to-analog converter preamp with multiple inputs and outputs. Fosi Audio's first DAC to support HDMI ARC input and comes equipped with a high-performance ES9039Q2M chip to deliver rich and superior sound

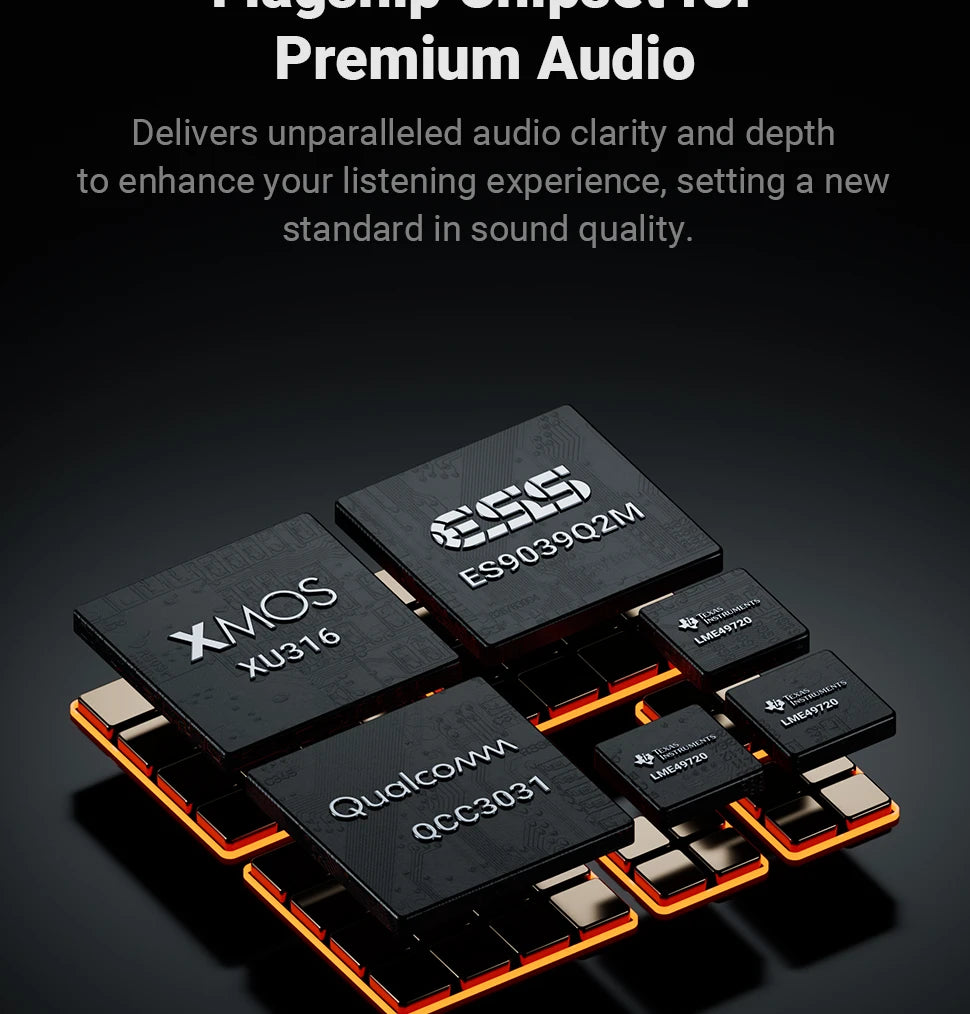

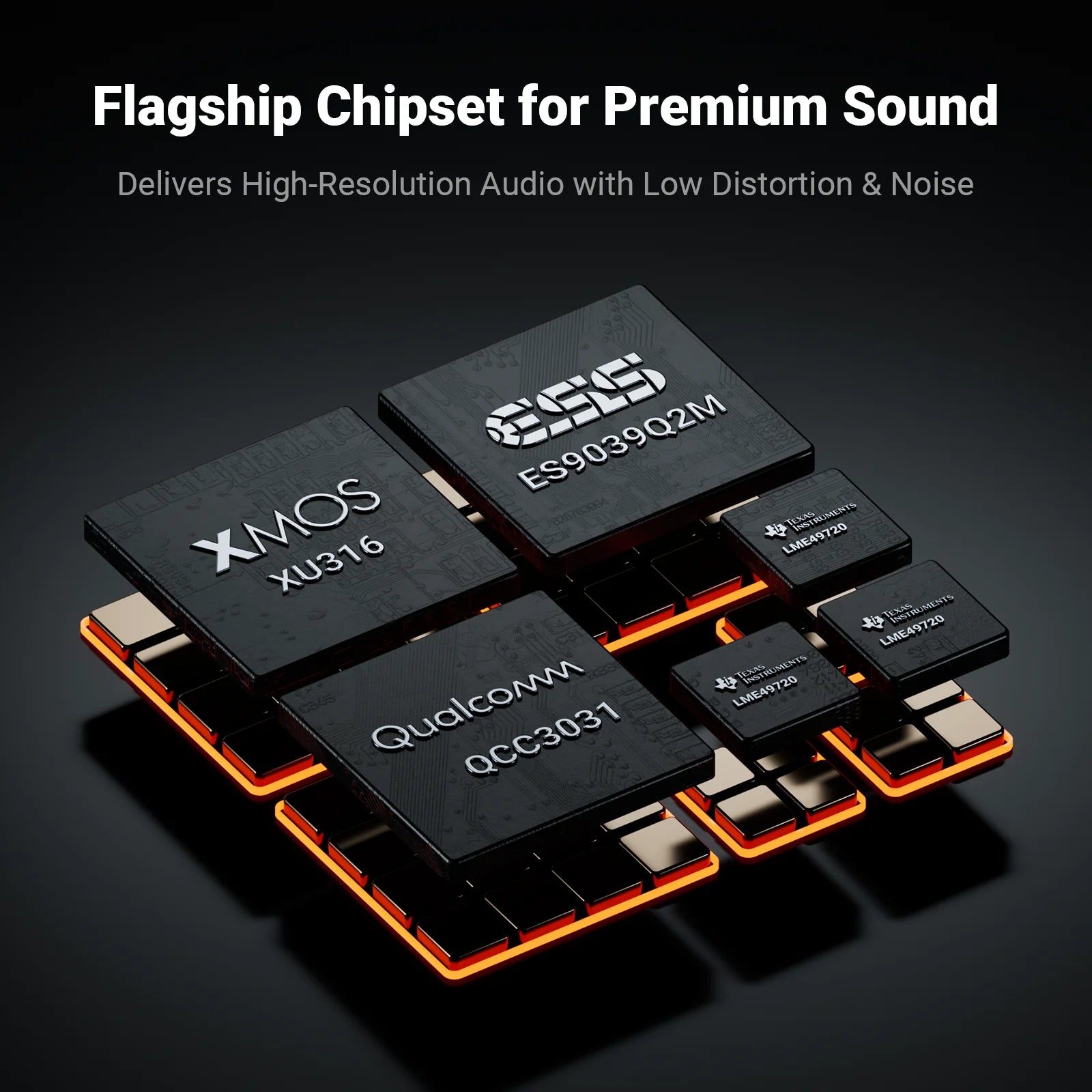

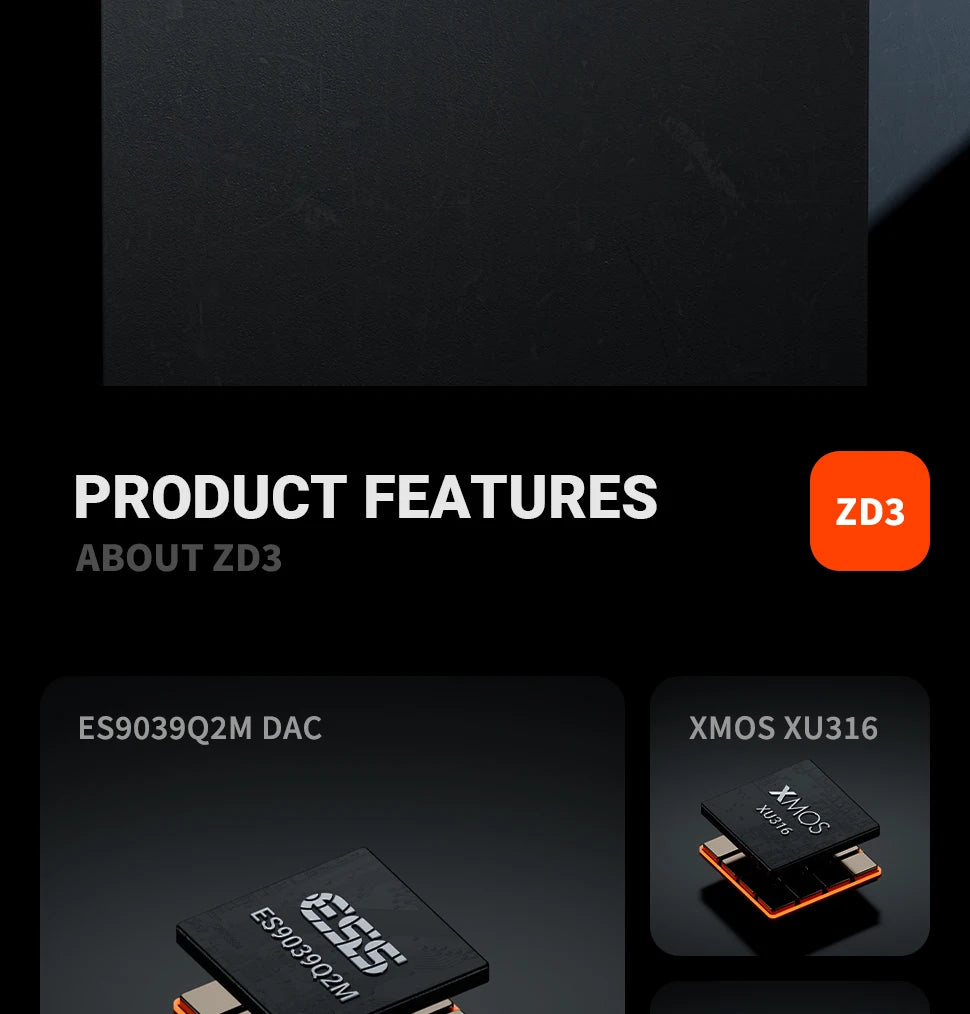

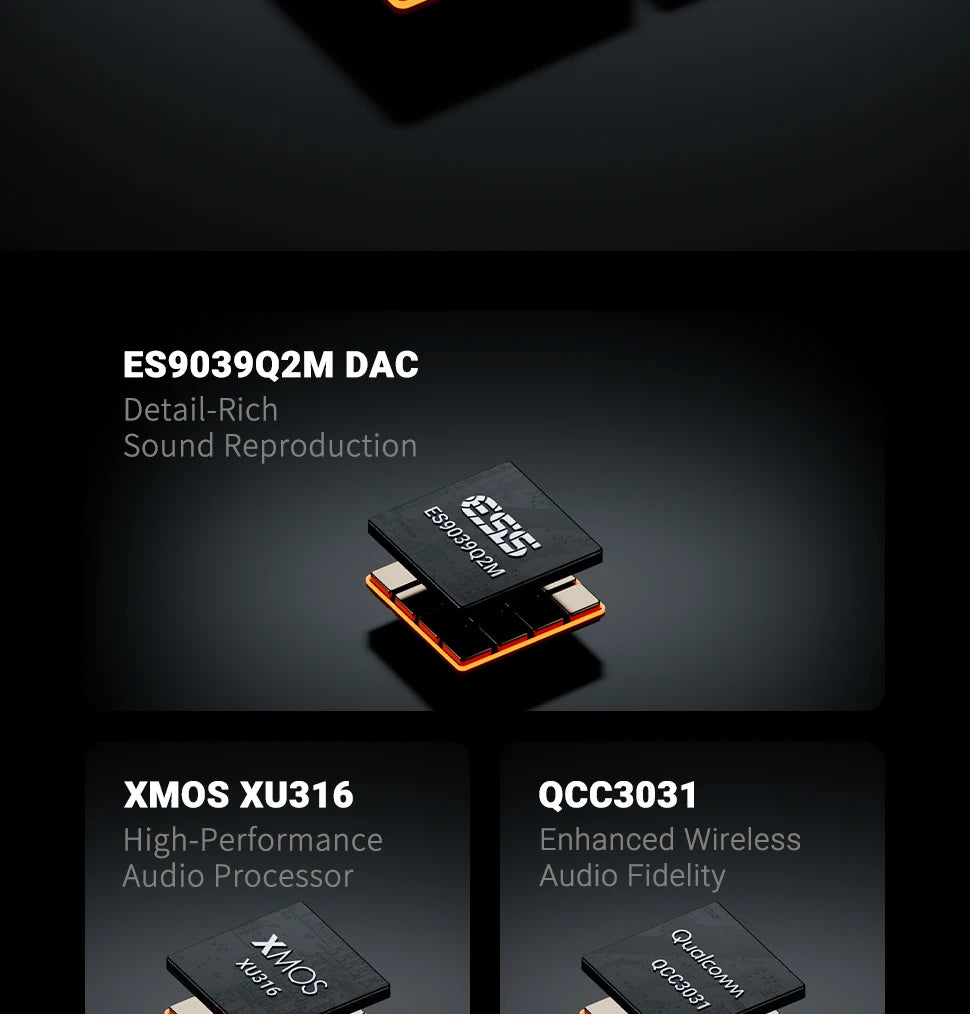

• Premium Chipset: The ZD3 features the chipset consisting of XMOS XU316+ES9039Q2M+QCC3031+LME49720. It supports high audio resolution, with a maximum capability of DSD512 and PCM 32bit/768kHz sampling rates, providing unparalleled clarity and depth.

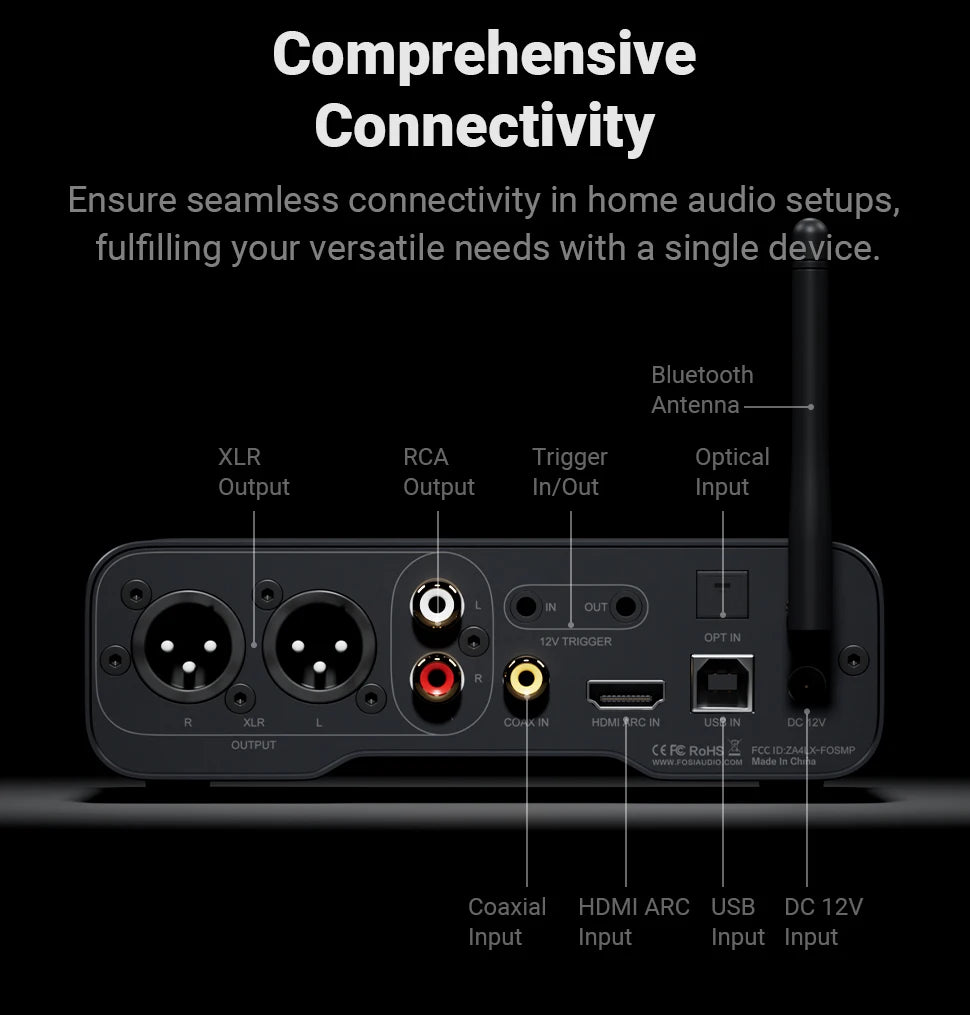

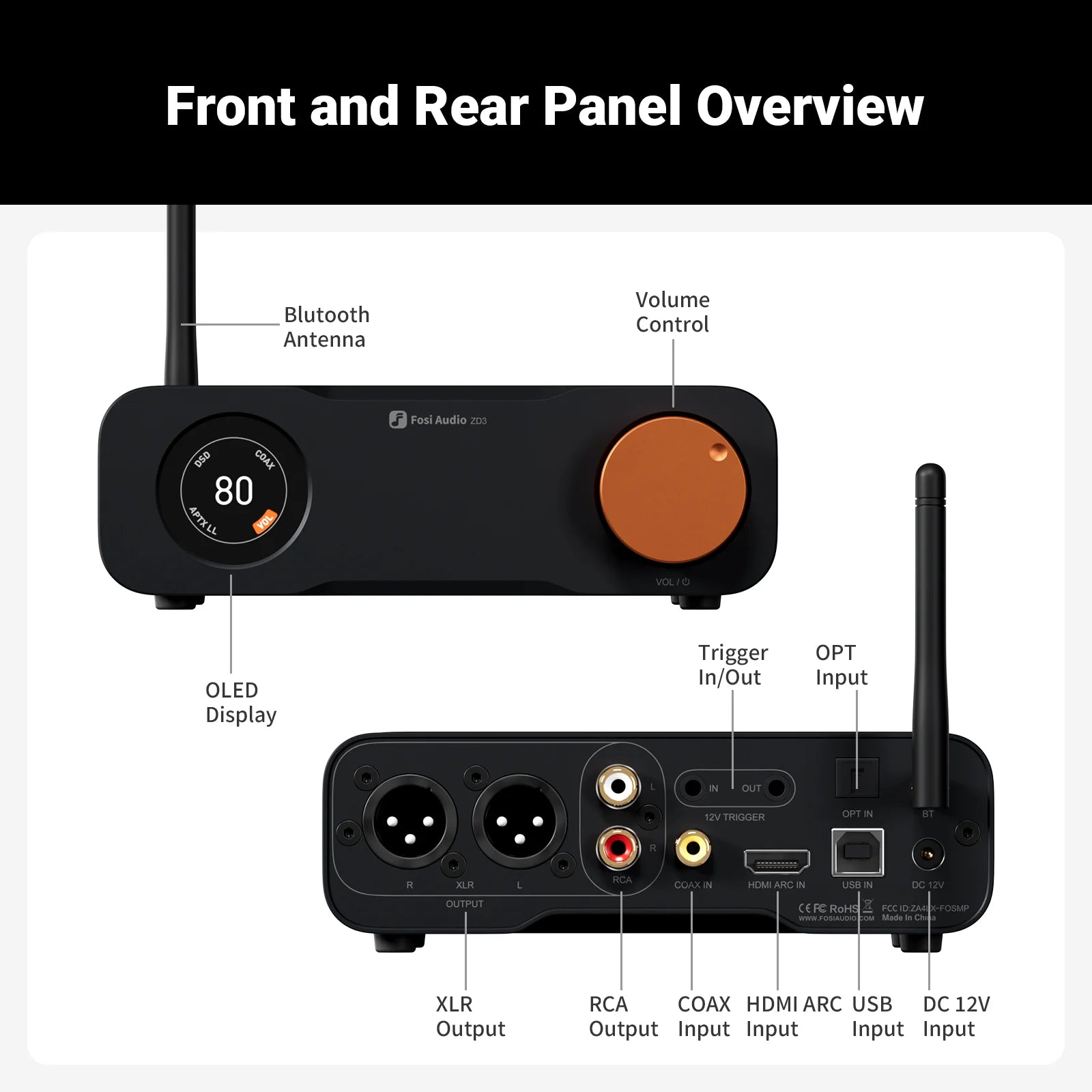

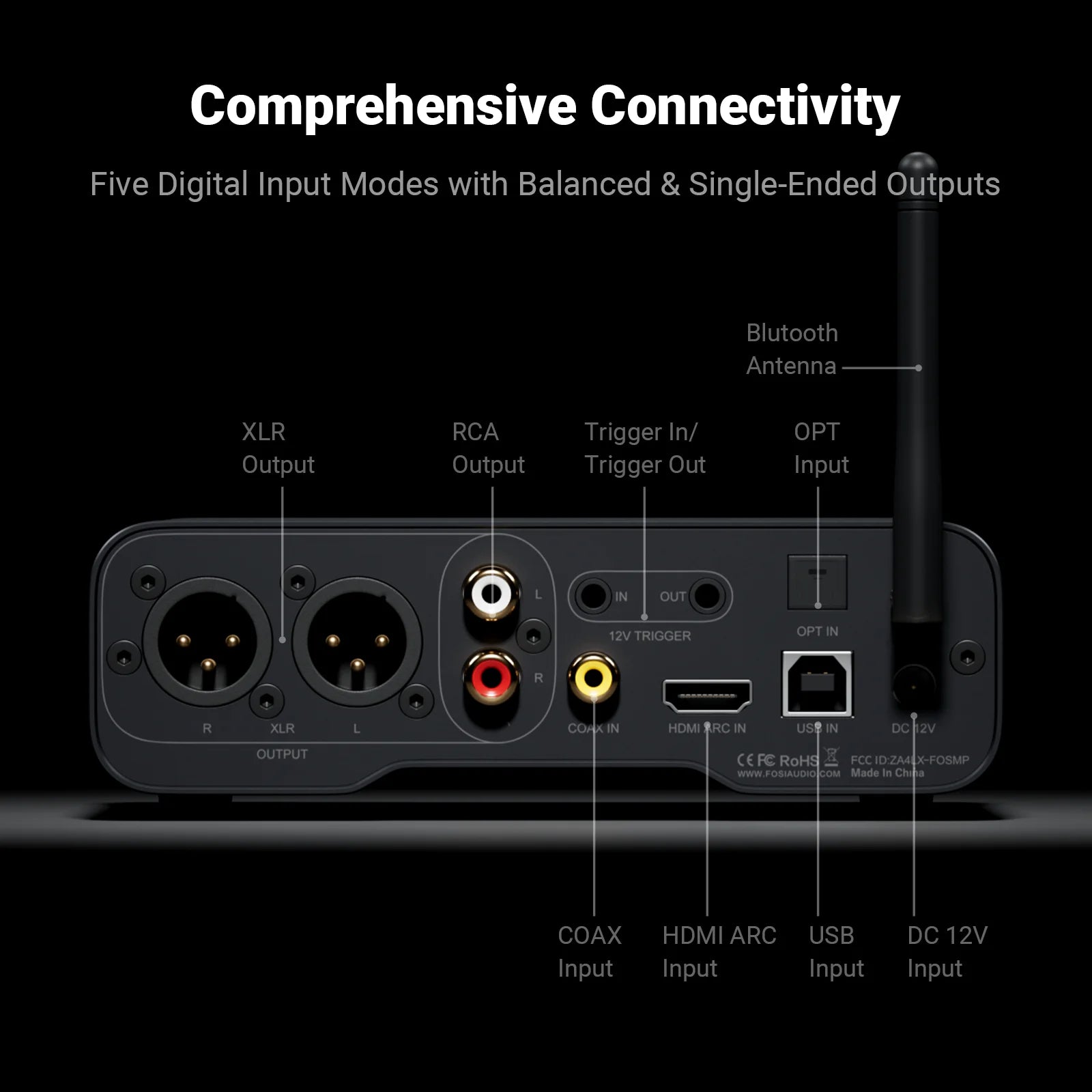

• Versatile & Flexible: The ZD3 offers comprehensive connectivity, supporting inputs like Bluetooth, USB, OPT, COAX, HDMI ARC, and balanced XLR/RCA outputs. This flexibility allows you to customize your audio system to suit various setups and scenarios.

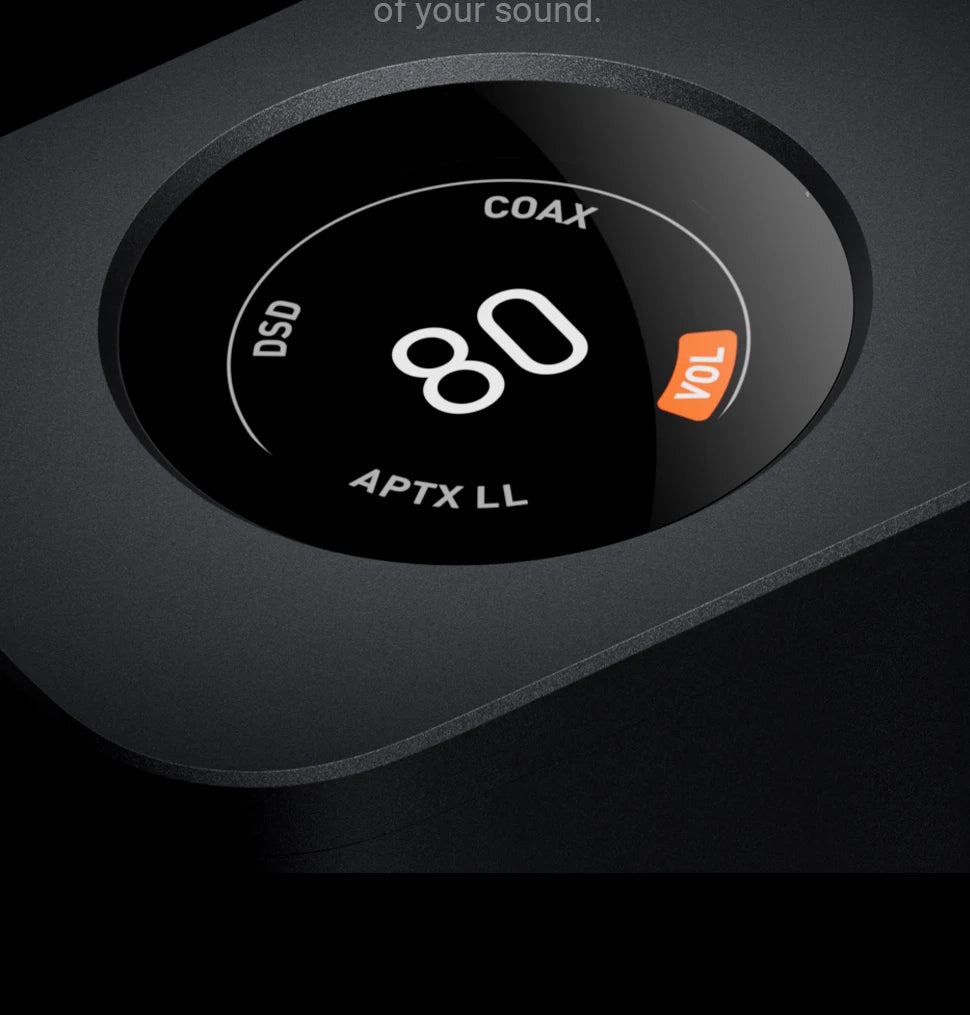

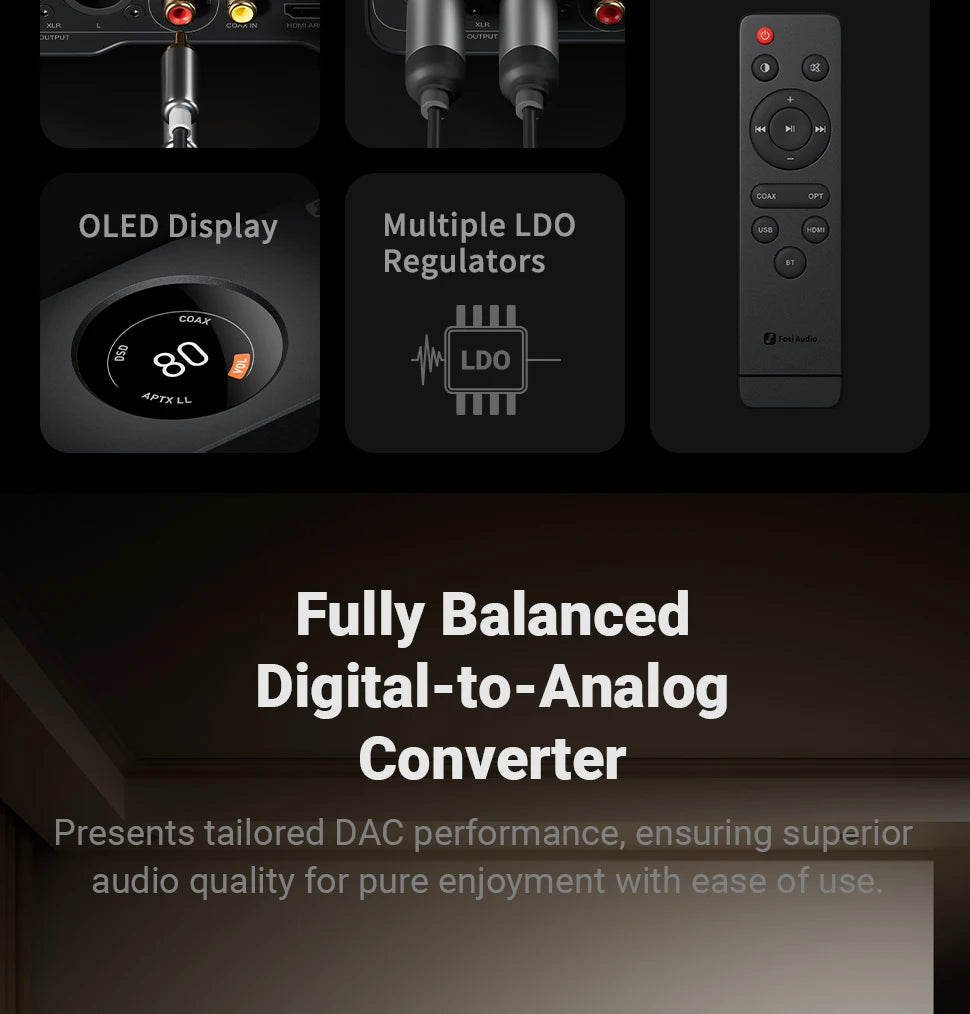

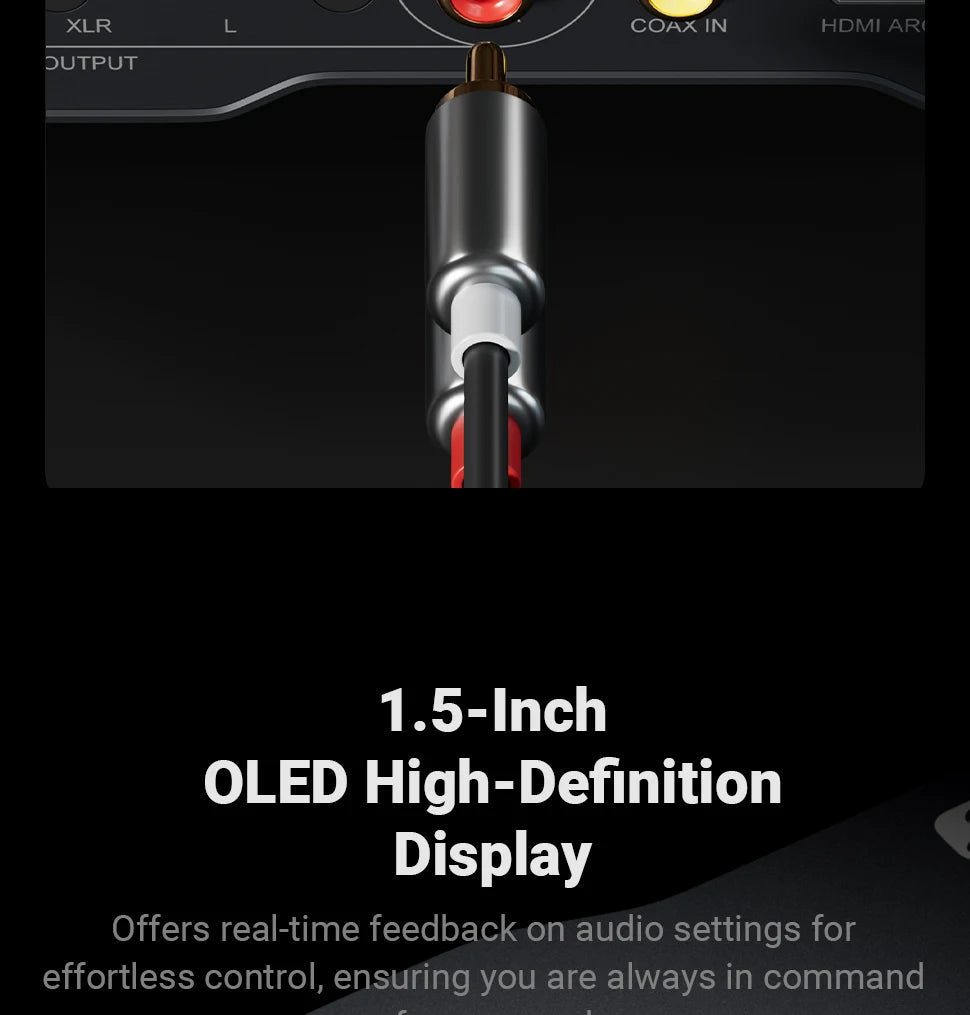

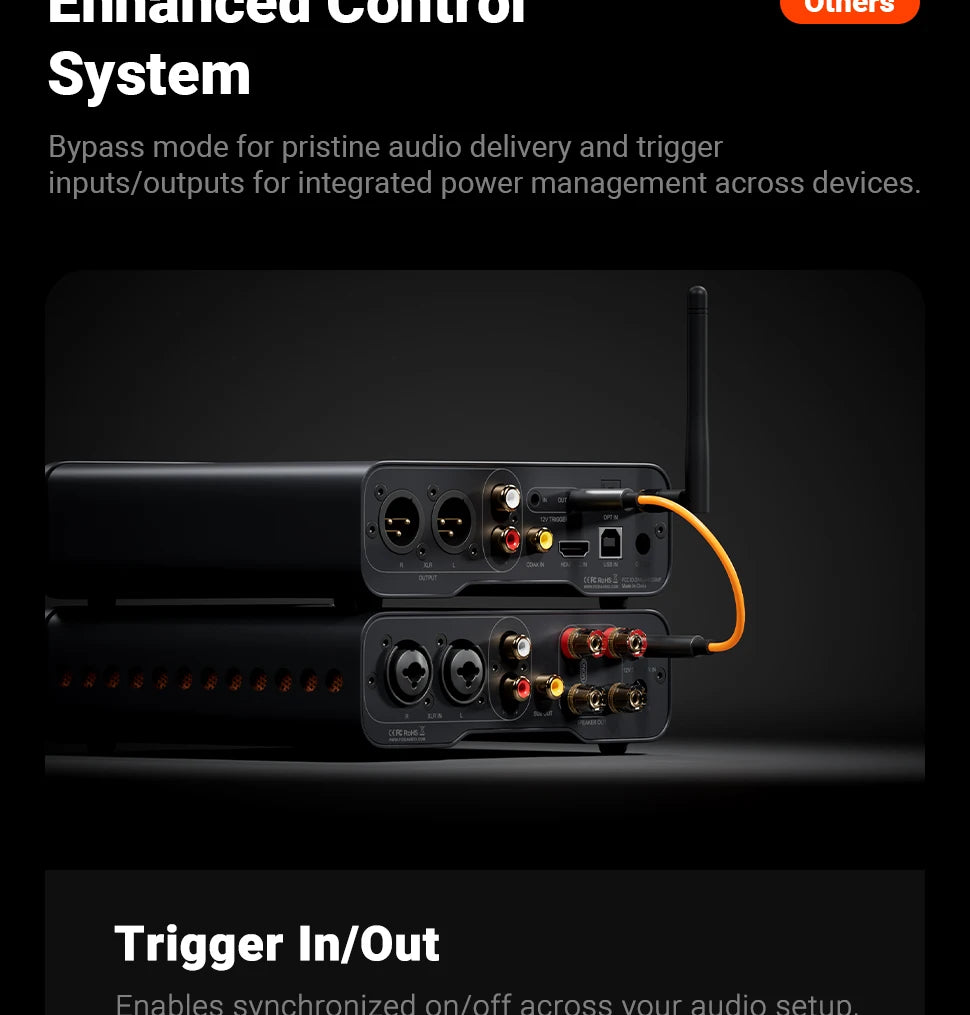

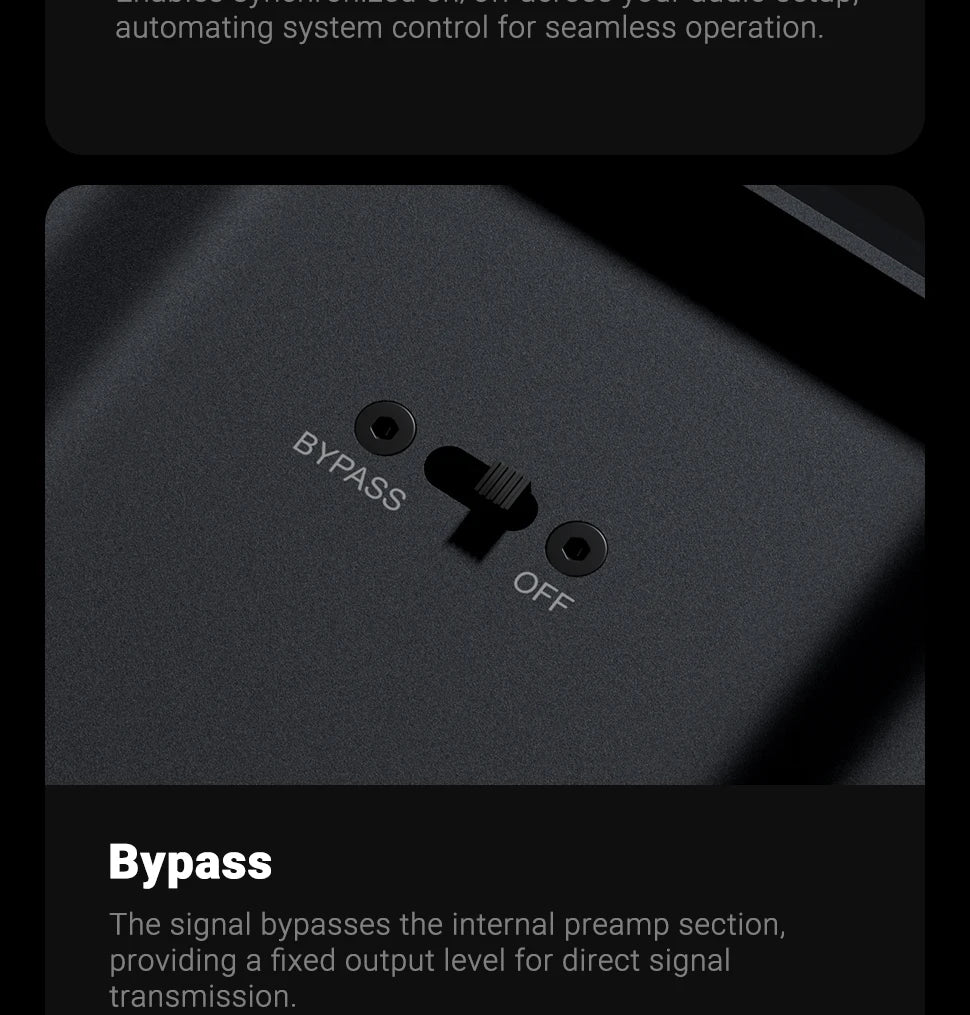

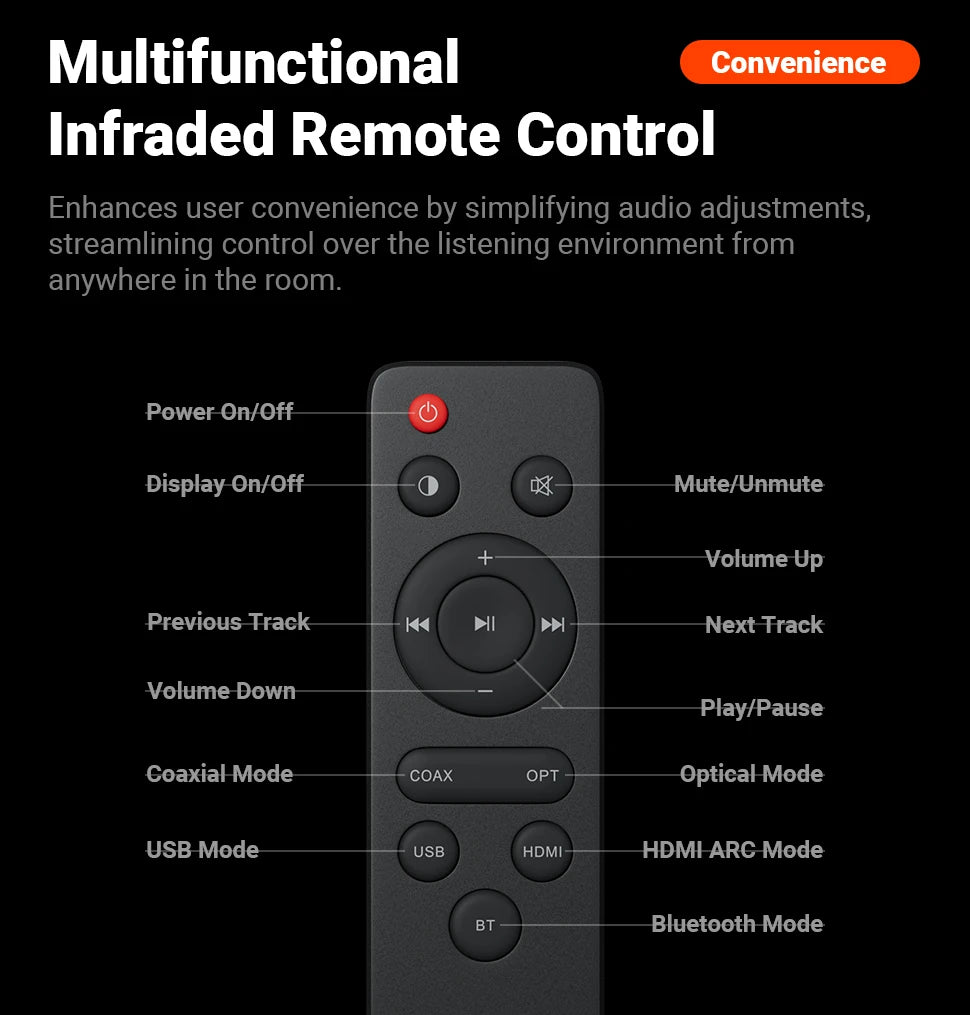

• Ease of Use: The ZD3 adopts a 1.5-inch OLED display, remote control, preamp bypass switch, and 12V trigger in/out interfaces, allowing synchronized power on/off with other home audio devices, all for a good user experience.

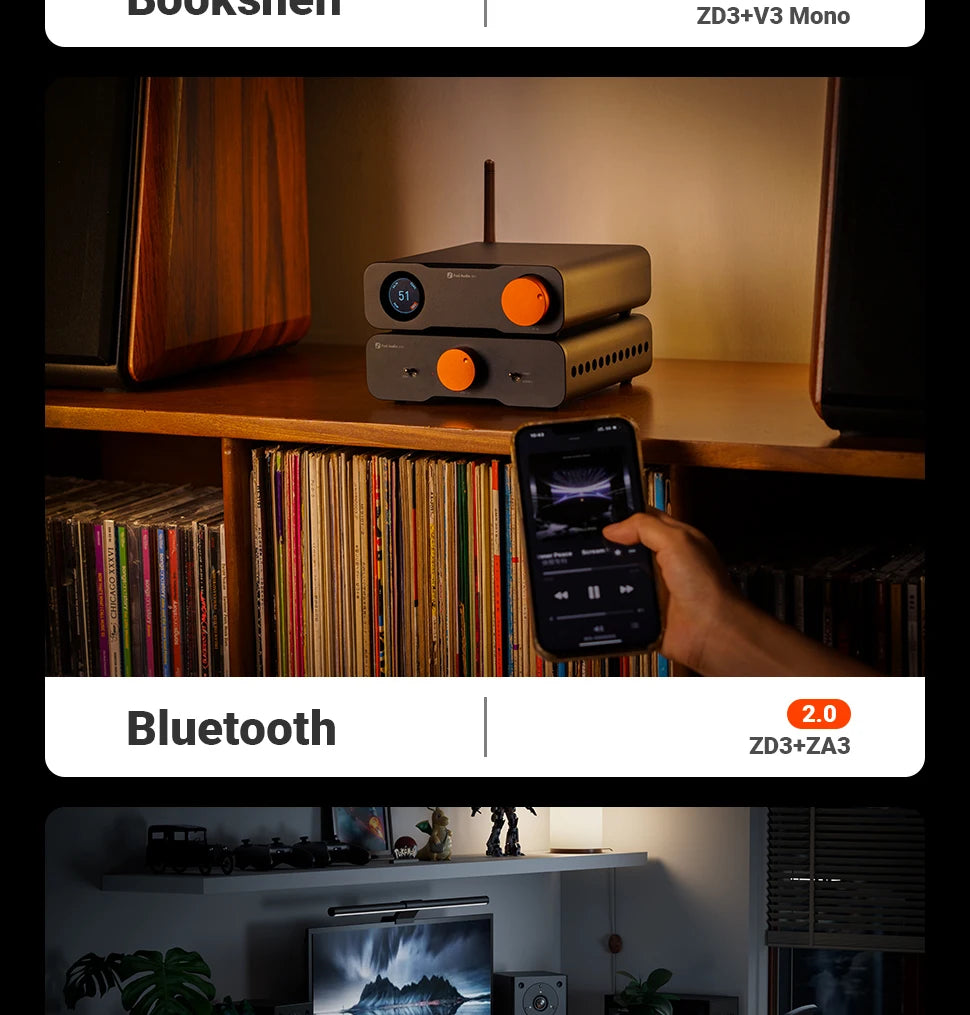

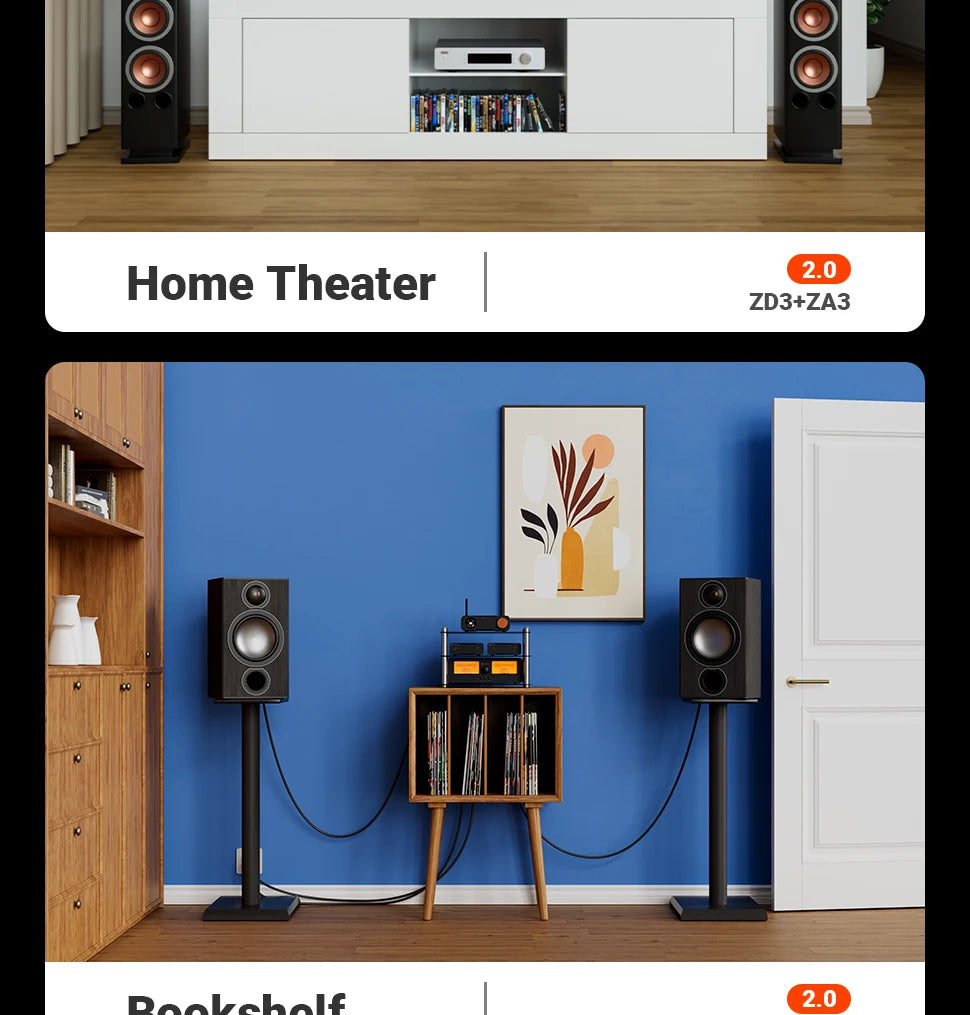

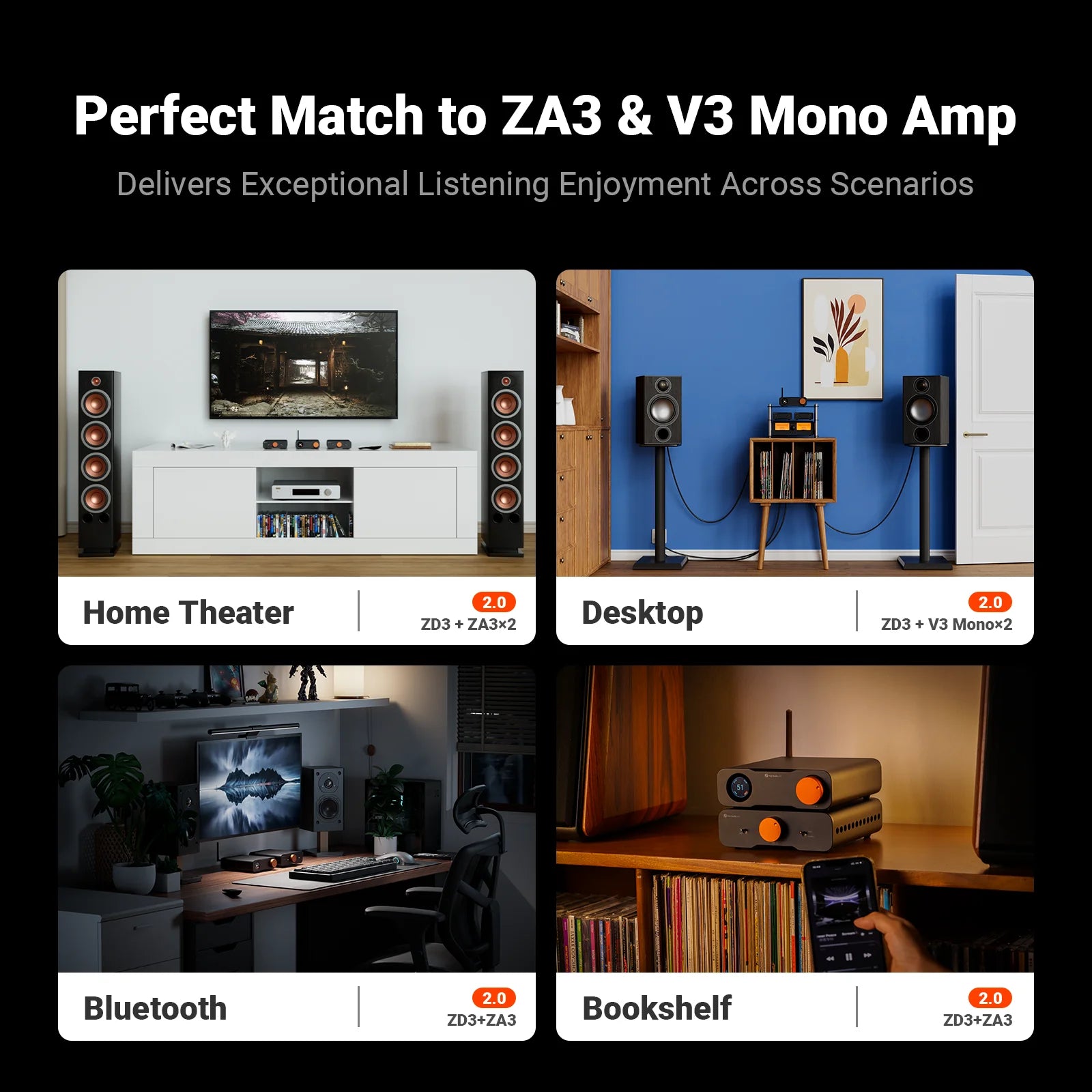

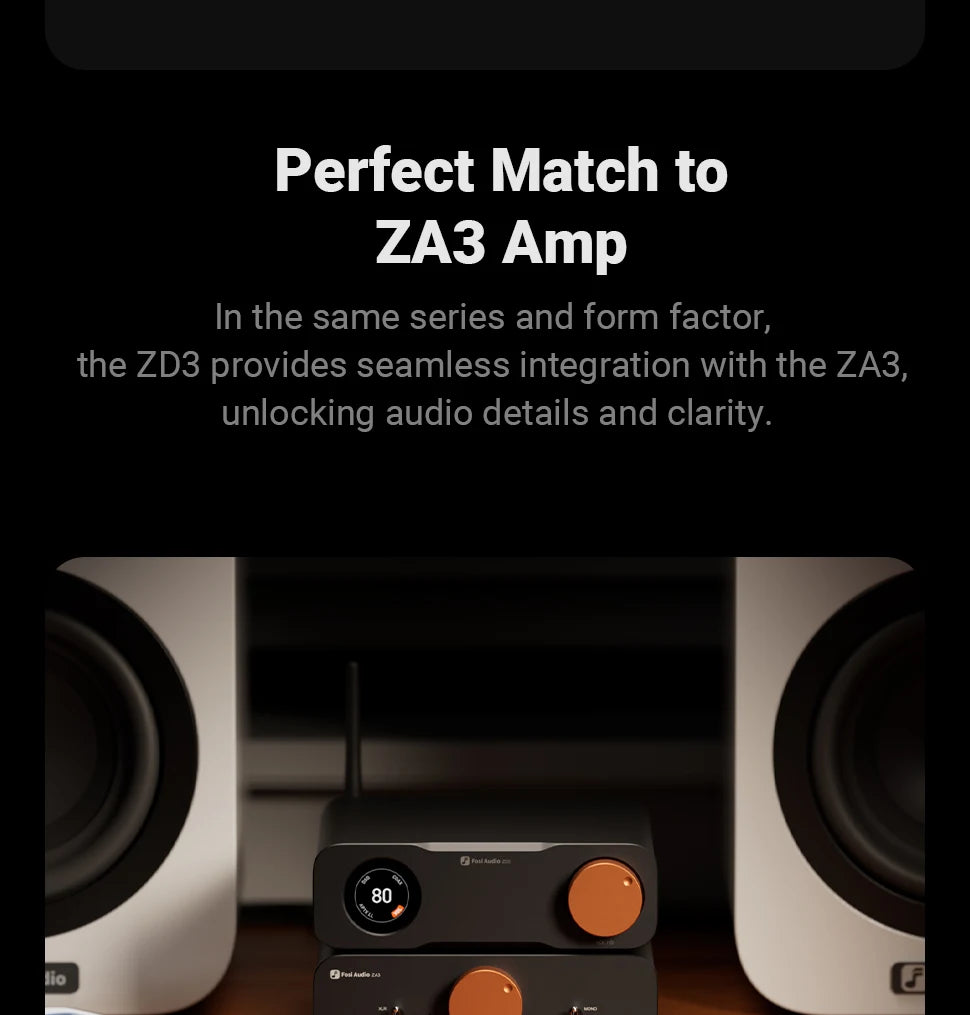

• Family Design: Featuring the same design language as the ZA3 amplifier: compact and exquisite appearance and audiophile-grade components for high performance and excellent sound quality. Pair it with the ZA3 to create a robust home audio system.

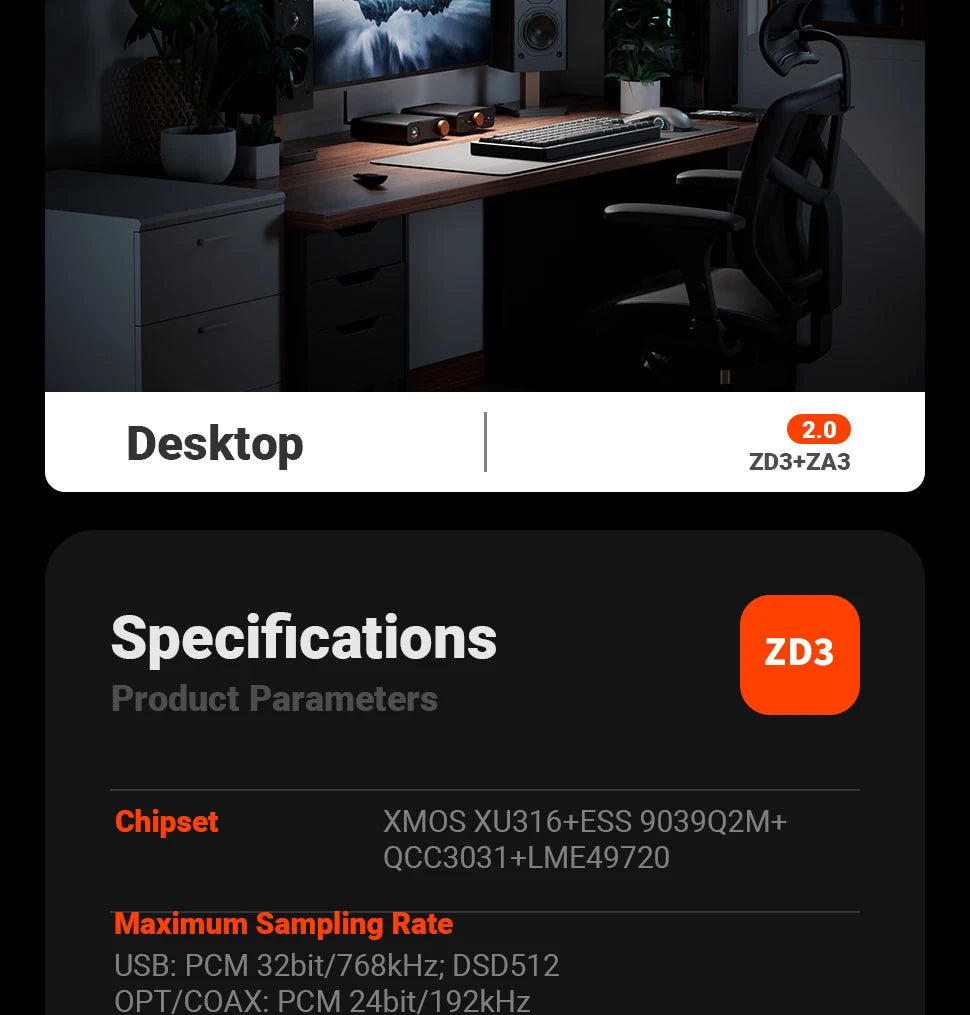

Feature:

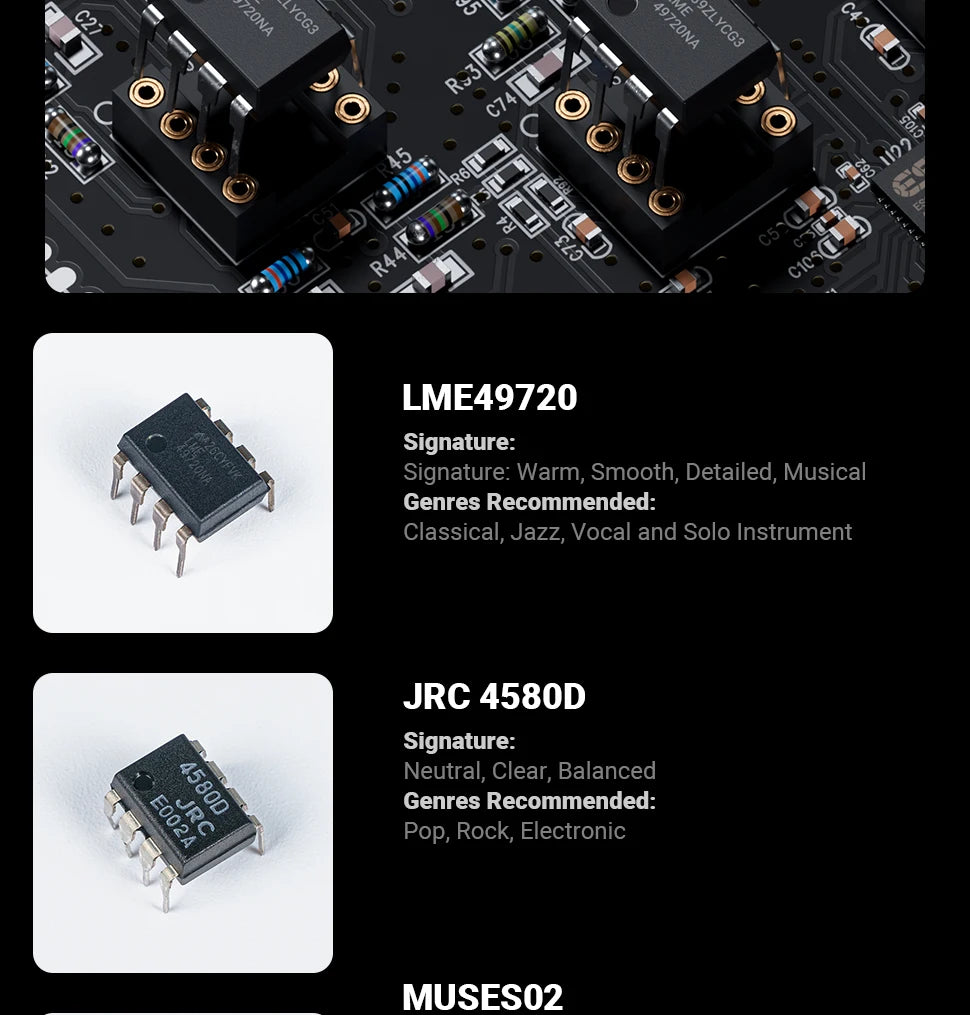

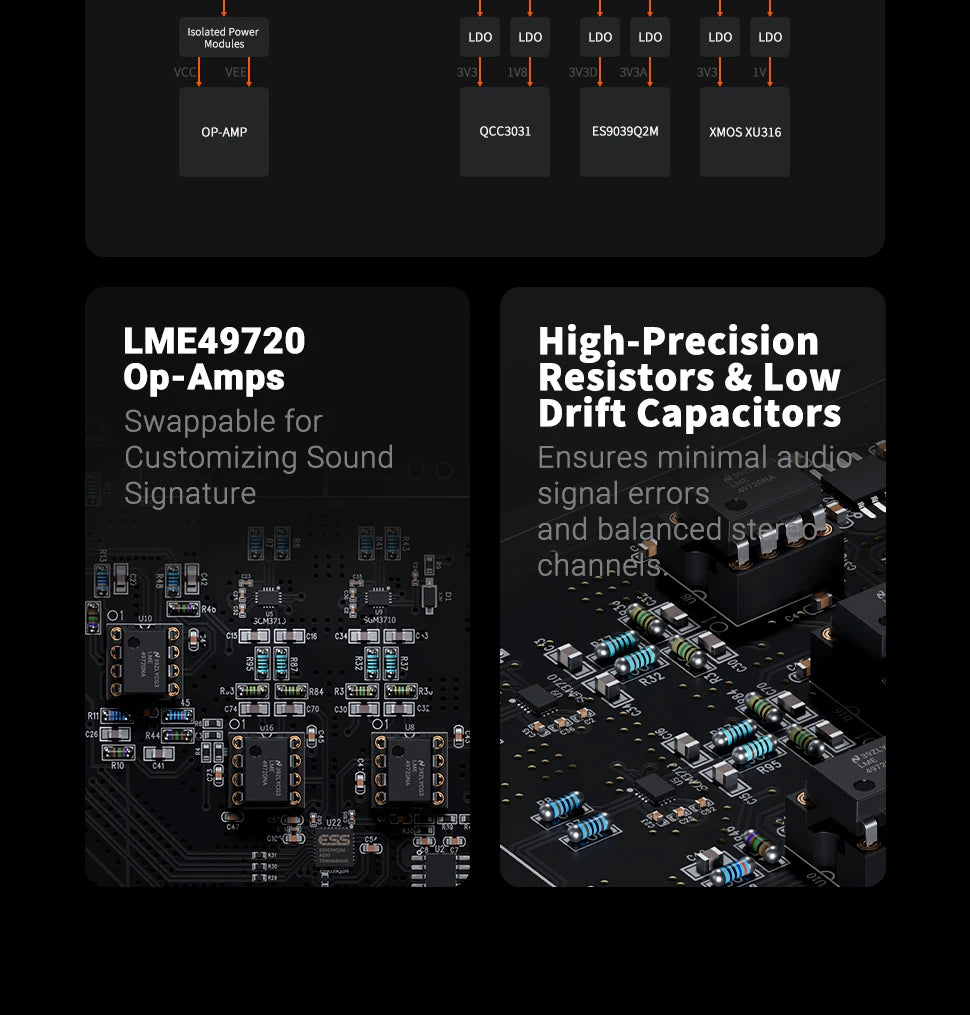

• Chipset: XMOS XU316+ESS 9039Q2M+QCC3031+LME49720

• Maximum Sampling Rate

          USB:PCM 32bit/768kHz; DSD512

          OPT/COA: PCM 24bit/192kHz

          HDMI: PCM 24bit/192kHz;

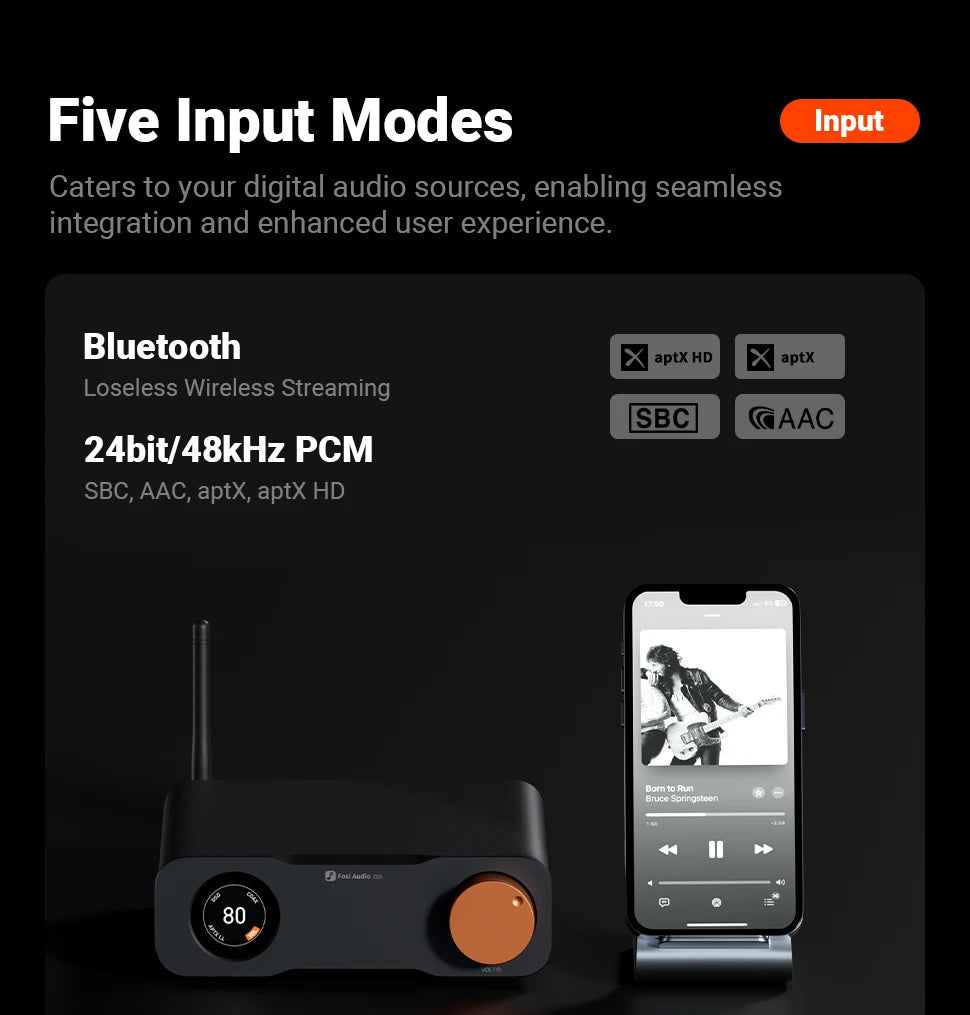

          Bluetooth: PCM 24bit/48kHz;

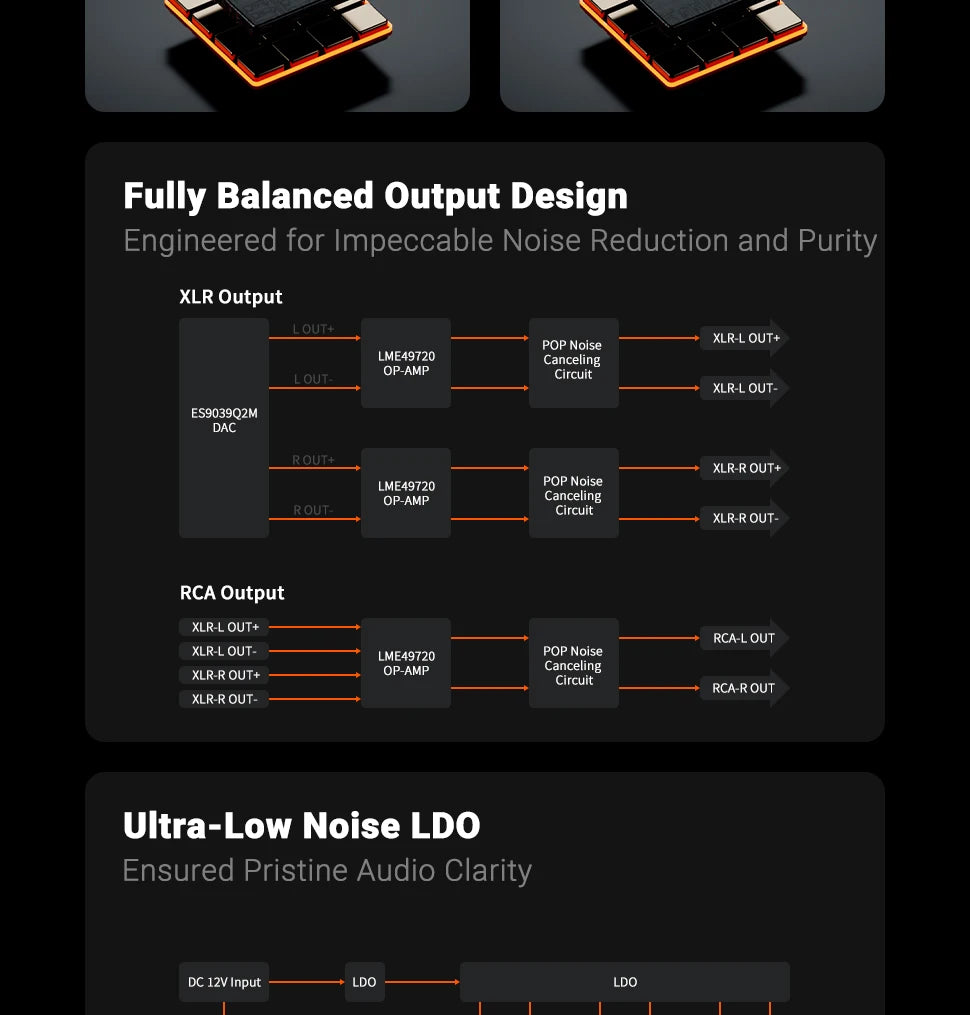

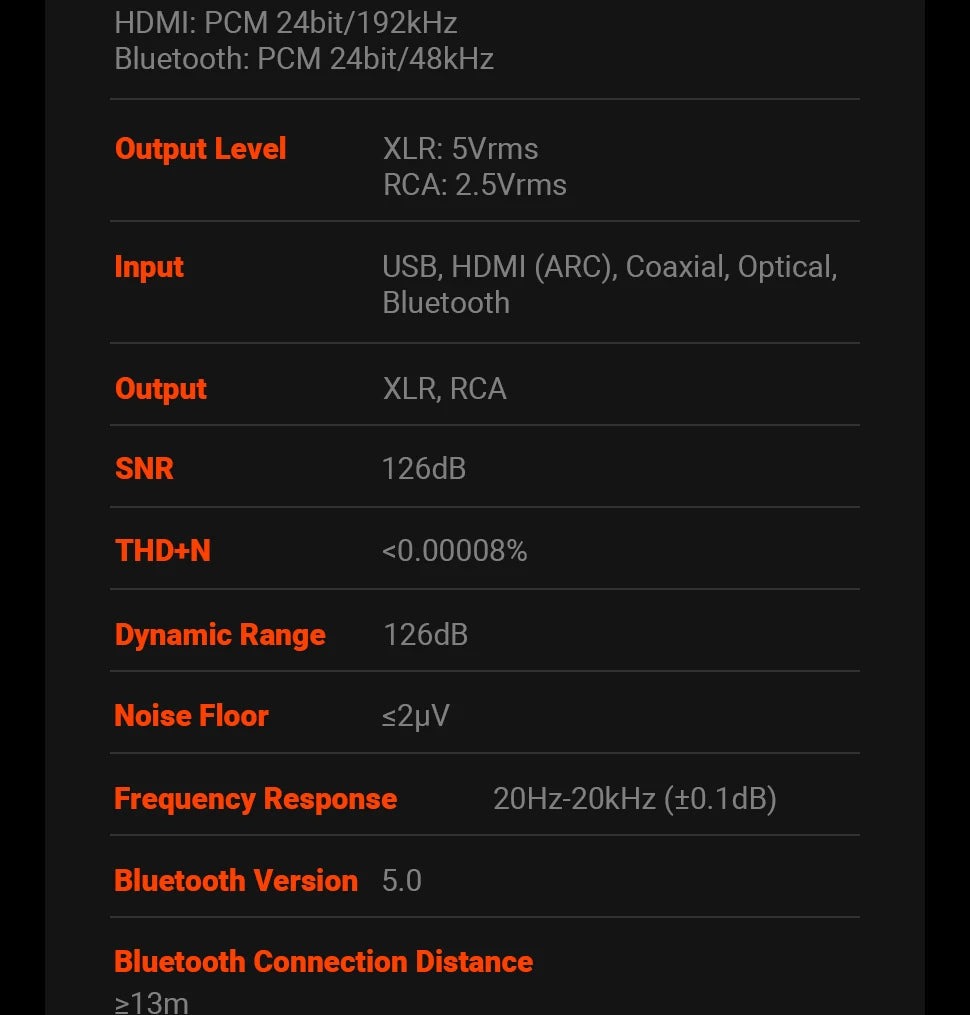

• Output Level: XLR: 5Vrms/RCA: 2.5Vrms

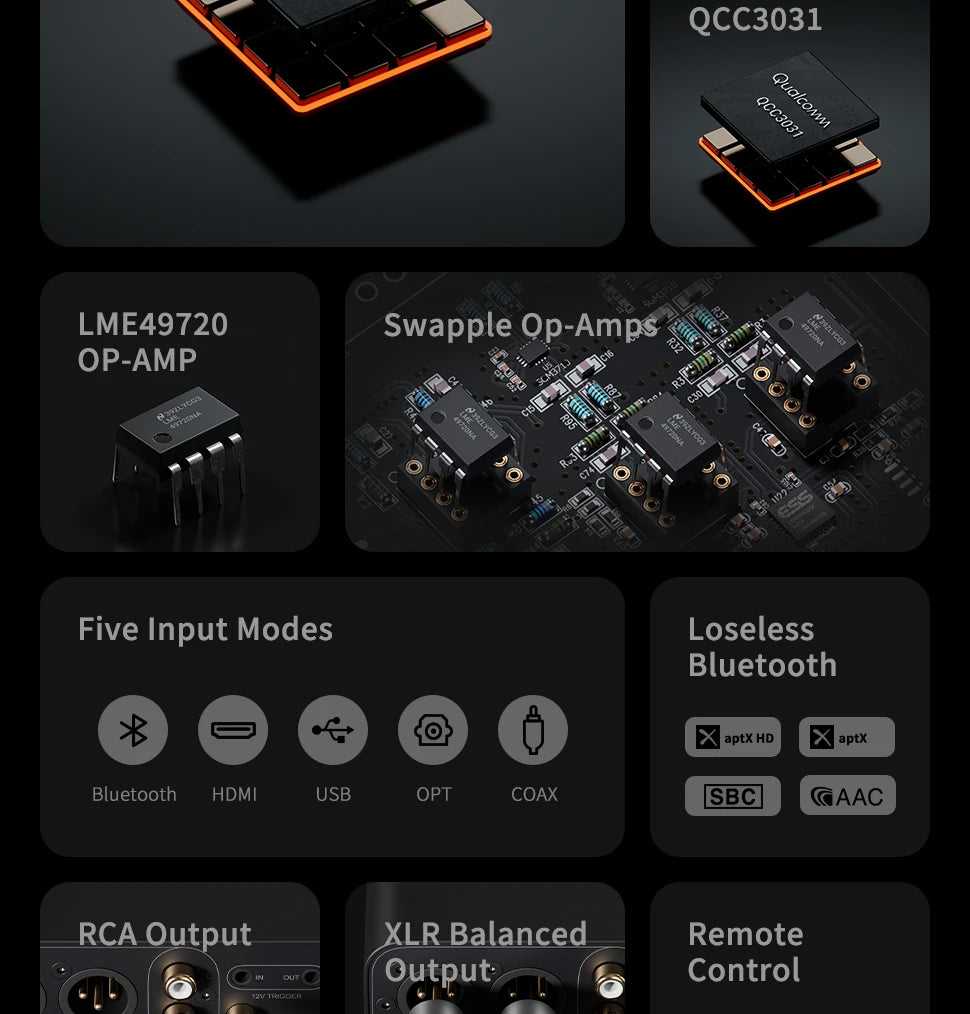

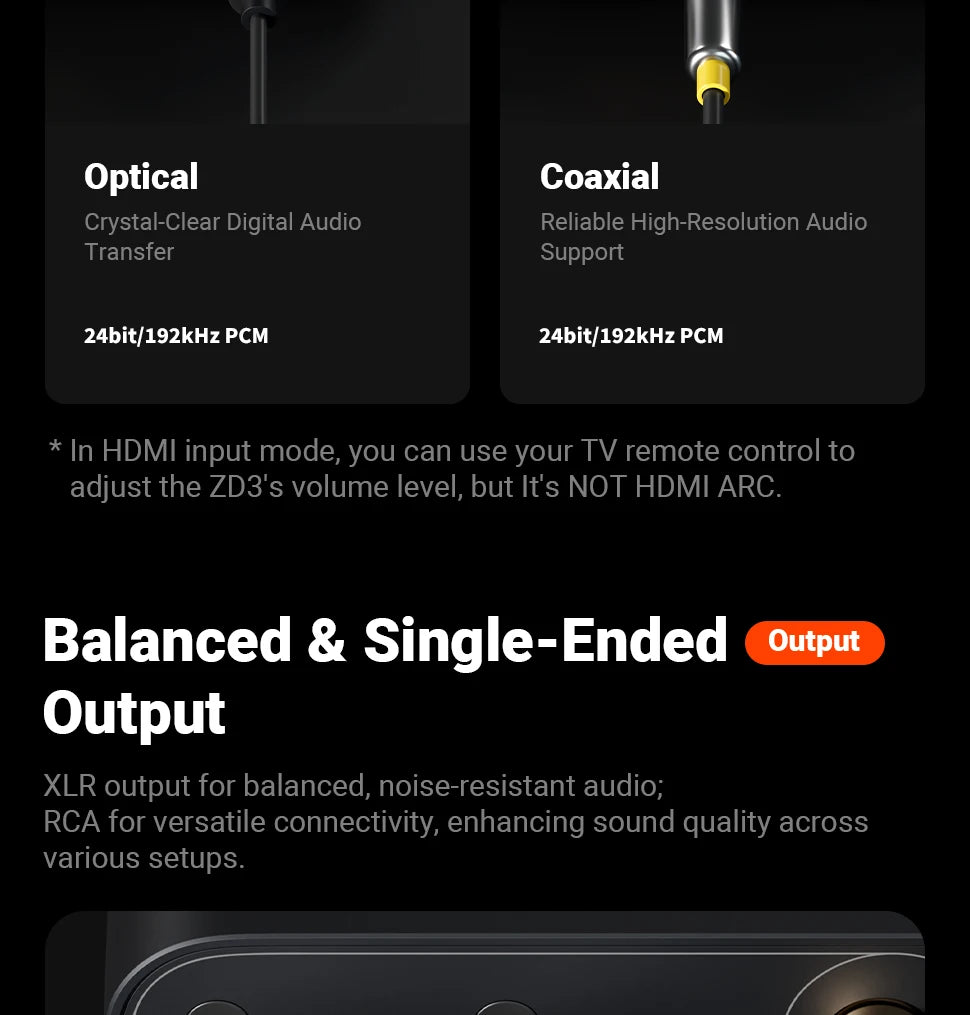

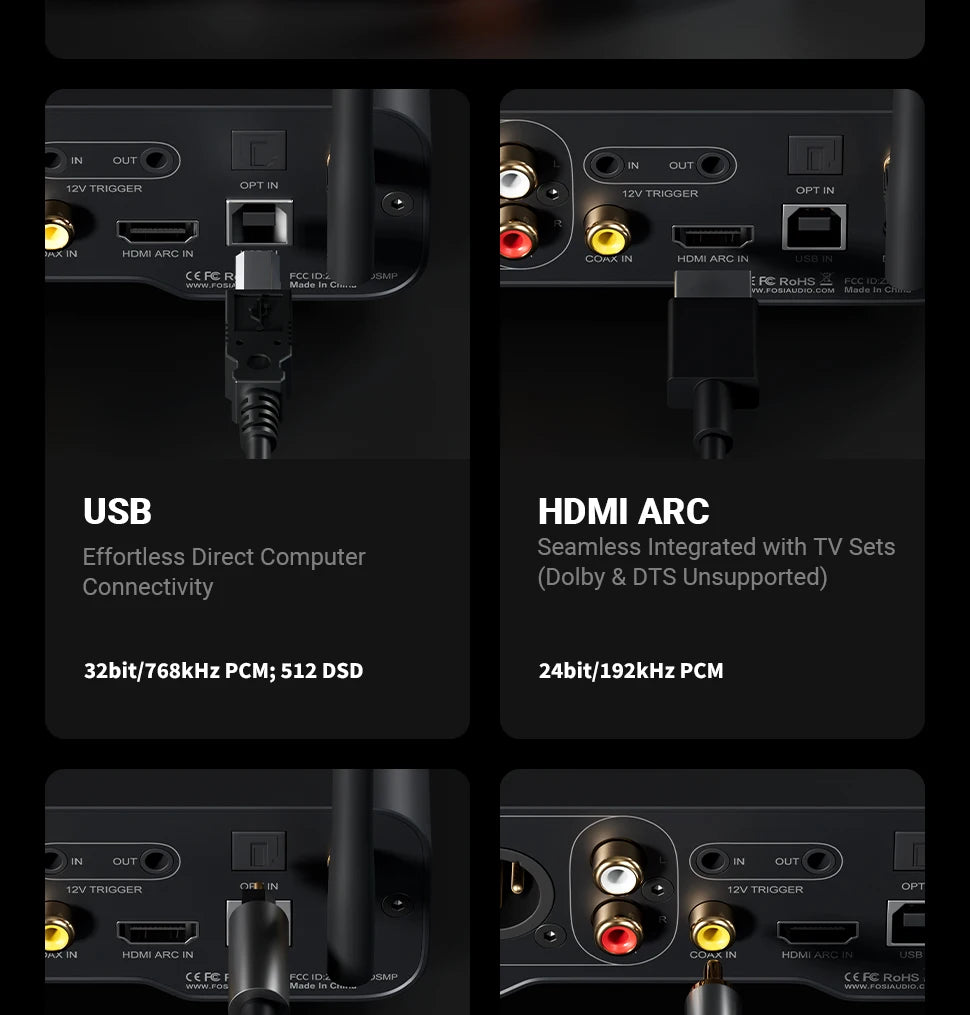

• Input: USB, HDMI (ARC), Coaxial, Optical, Bluetooth

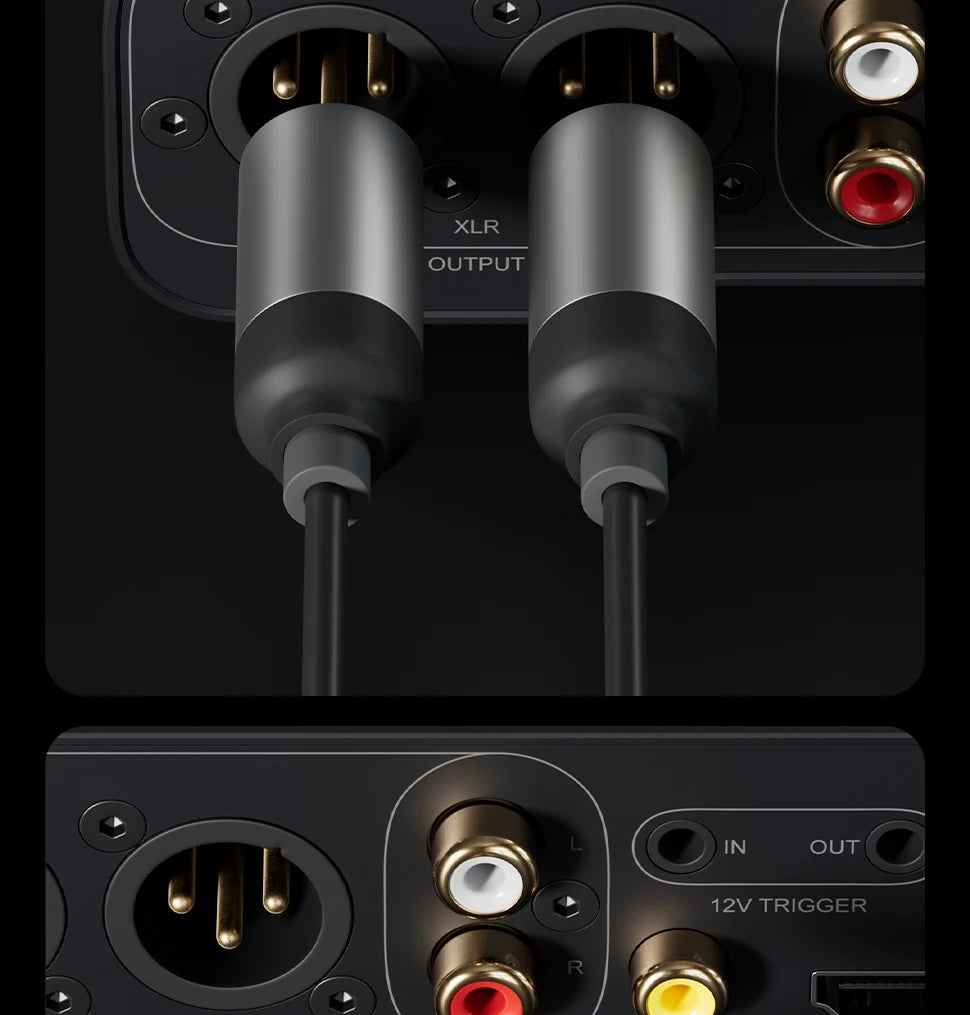

• Output: XLR, RCA


• SNR: 126dB


• THD+N: <0.00008%


• Dynamic Range: 126dB


• Noise Floor: ≤2μV


• Frequency Response: 20Hz-20kHz (±0.1dB)


• Bluetooth Version: 5.0


• Bluetooth Connection Distance: ≥13m

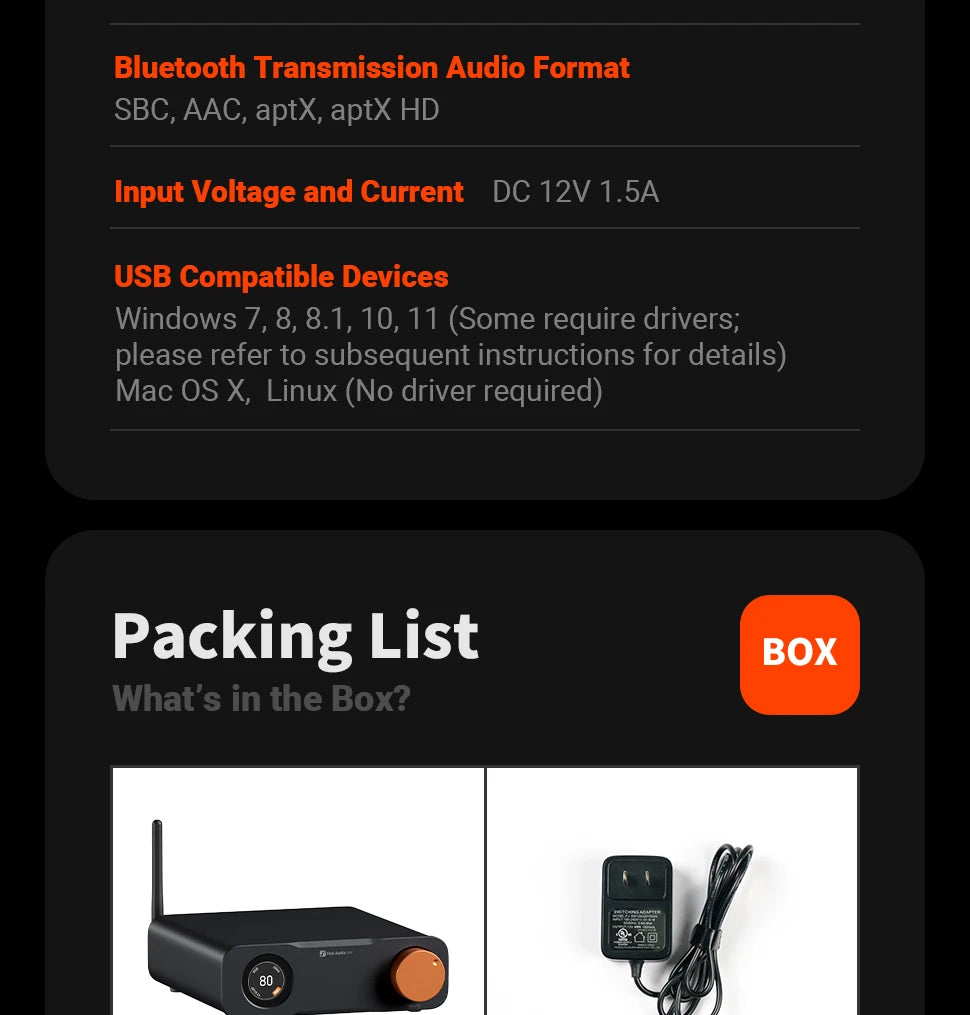

• Bluetooth Transmission Audio Format: SBC, AAC, aptX, aptX HD


• Input Voltage and Current: DC 12V 1.5A

• USB Compatible Devices:

• Windows 7, 8, 8.1, 10, 11 (Some require drivers; please refer to subsequent instructions for details)
  Mac OS X, Linux (No driver required)

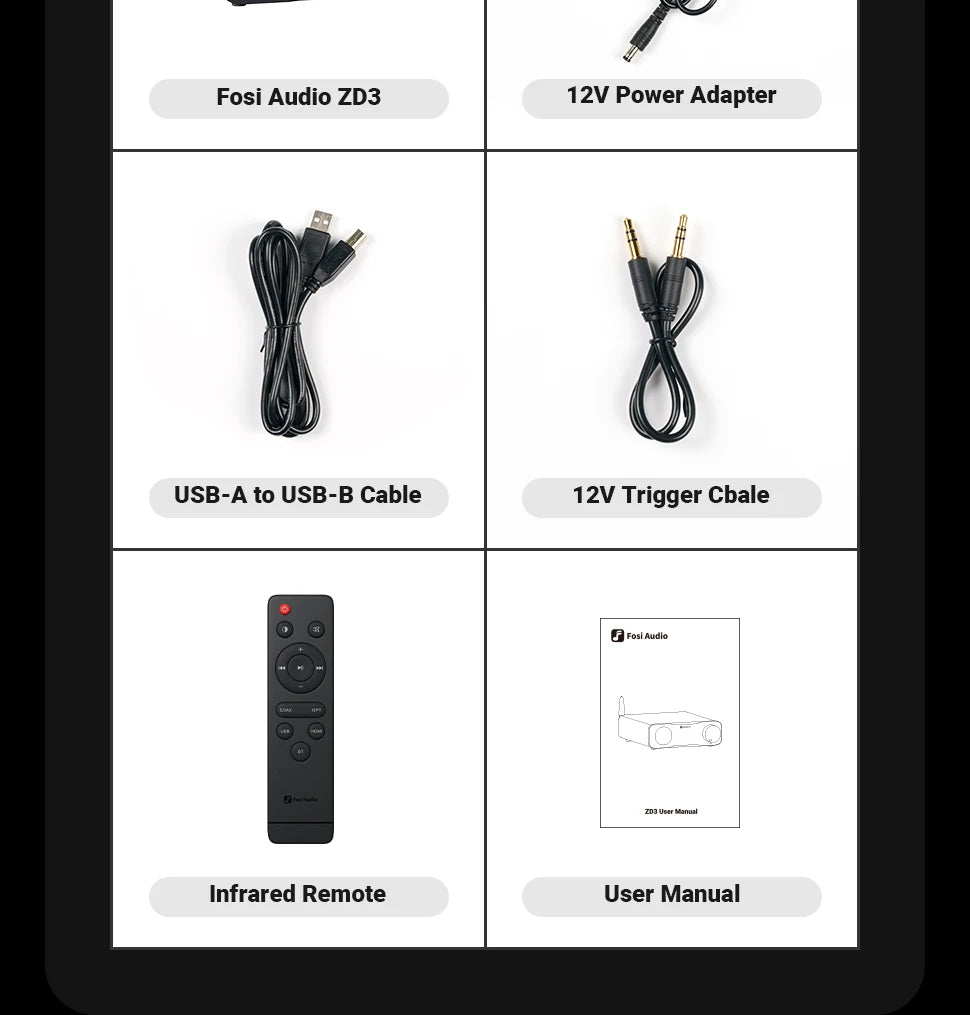

Package include

• ZD3*1

• USB-A to USB-B Cable*1

• 12V Power Adapter*1

• Bluetooth Antenna*1

• 12V Trigger Cable*1

• Infrared Remote*1

• User Manual*1
